XT-Stahlschalung
Hier finden Sie die alle Angaben zu den Voll- und Halbhöhenelementen, Rundelementen, beweglichen und starren Ecken etc. zu XT 2500, XT 1250, XT 2700 und XT 1350
 |

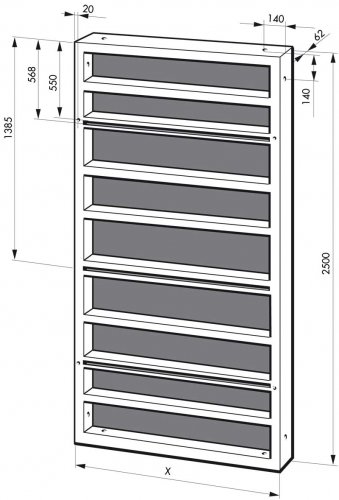

XT-Vollhöhenelemente 2500
| Artikel-Nr. | B x H in cm | kg | m² |
| XT 2500 EL 2500 | 250,0 x 250,0 | 395,0 | 6,25 |
| XT 2500 EL 1250 | 125,0 x 250,0 | 155,0 | 3,12 |
| XT 2500 EL 1000 | 100,0 x 250,0 | 130,0 | 2,50 |
| XT 2500 EL 0880 | 88,0 x 250,0 | 117,5 | 2,20 |
| XT 2500 EL 0820 | 82,0 x 250,0 | 112,0 | 2,05 |
| XT 2500 EL 0760 | 76,0 x 250,0 | 107,0 | 1,90 |
| XT 2500 EL 0720 | 72,0 x 250,0 | 98,0 | 1,80 |
| XT 2500 EL 0620 | 62,0 x 250,0 | 89,5 | 1,55 |
| XT 2500 EL 0560 | 56,0 x 250,0 | 83,5 | 1,40 |
| XT 2500 EL 0530 | 53,0 x 250,0 | 80,0 | 1,32 |
| XT 2500 EL 0510 | 51,0 x 250,0 | 78,0 | 1,27 |
| XT 2500 EL 0500 | 50,0 x 250,0 | 76,5 | 1,25 |
| XT 2500 EL 0460 | 46,0 x 250,0 | 72,0 | 1,15 |
| XT 2500 EL 0430 | 43,0 x 250,0 | 69,5 | 1,07 |
| XT 2500 EL 0380 | 38,0 x 250,0 | 64,5 | 0,95 |
| XT 2500 EL 0330 | 33,0 x 250,0 | 60,0 | 0,82 |
| XT 2500 EL 0300 | 30,0 x 250,0 | 56,0 | 0,75 |
| XT 2500 EL 0240 | 24,0 x 250,0 | 50,8 | 0,60 |
| XT 2500 EL 0200 | 20,0 x 250,0 | 46,0 | 0,50 |
 |
XT-Halbhöhenelemente 1250
| Artikel-Nr. | B x H in cm | kg | m² |
| XT 1250 EL 1250 | 125,0 x 125,0 | 78,0 | 1,56 |
| XT 1250 EL 1000 | 100,0 x 125,0 | 68,0 | 1,25 |
| XT 1250 EL 0880 | 88,0 x 125,0 | 63,0 | 1,10 |
| XT 1250 EL 0820 | 82,0 x 125,0 | 61,0 | 1,02 |
| XT 1250 EL 0760 | 76,0 x 125,0 | 59,0 | 0,95 |
| XT 1250 EL 0720 | 72,0 x 125,0 | 57,0 | 0,90 |
| XT 1250 EL 0620 | 62,0 x 125,0 | 54,0 | 0,77 |
| XT 1250 EL 0560 | 56,0 x 125,0 | 44,0 | 0,70 |
| XT 1250 EL 0530 | 53,0 x 125,0 | 42,5 | 0,66 |
| XT 1250 EL 0510 | 51,0 x 125,0 | 41,0 | 0,63 |
| XT 1250 EL 0500 | 50,0 x 125,0 | 39,0 | 0,62 |
| XT 1250 EL 0460 | 46,0 x 125,0 | 37,5 | 0,57 |
| XT 1250 EL 0430 | 43,0 x 125,0 | 37,0 | 0,54 |
| XT 1250 EL 0380 | 38,0 x 125,0 | 34,5 | 0,47 |
| XT 1250 EL 0330 | 33,0 x 125,0 | 31,5 | 0,41 |
| XT 1250 EL 0300 | 30,0 x 125,0 | 30,0 | 0,37 |
| XT 1250 EL 0240 | 24,0 x 125,0 | 27,0 | 0,30 |
| XT 1250 EL 0200 | 20,0 x 125,0 | 25,0 | 0,25 |
 |
XT-Vollhöhenelemente 2700
| Artikel-Nr. | B x H in cm | kg | m² |
| XT 2700 EL 2400 | 240,0 x 270,0 | 420,0 | 6,48 |
| XT 2700 EL 1350 | 135,0 x 270,0 | 178,0 | 3,64 |
| XT 2700 EL 1000 | 100,0 x 270,0 | 140,0 | 2,70 |
| XT 2700 EL 0920 | 92,0 x 270,0 | 132,0 | 2,48 |
| XT 2700 EL 0900 | 90,0 x 270,0 | 130,0 | 2,43 |
| XT 2700 EL 0880 | 88,0 x 270,0 | 127,0 | 2,37 |
| XT 2700 EL 0820 | 82,0 x 270,0 | 120,0 | 2,21 |
| XT 2700 EL 0760 | 76,0 x 270,0 | 114,0 | 2,05 |
| XT 2700 EL 0720 | 72,0 x 270,0 | 110,0 | 1,94 |
| XT 2700 EL 0620 | 62,0 x 270,0 | 100,0 | 1,64 |
| XT 2700 EL 0560 | 56,0 x 270,0 | 93,0 | 1,51 |
| XT 2700 EL 0510 | 51,0 x 270,0 | 88,0 | 1,37 |
| XT 2700 EL 0500 | 50,0 x 270,0 | 87,0 | 1,35 |
| XT 2700 EL 0460 | 46,0 x 270,0 | 82,0 | 1,24 |
| XT 2700 EL 0430 | 43,0 x 270,0 | 79,0 | 1,16 |
| XT 2700 EL 0380 | 38,0 x 270,0 | 74,0 | 1,02 |
| XT 2700 EL 0330 | 33,0 x 270,0 | 70,0 | 0,89 |
| XT 2700 EL 0300 | 30,0 x 270,0 | 65,0 | 0,81 |
| XT 2700 EL 0240 | 24,0 x 270,0 | 60,0 | 0,64 |
| XT 2700 EL 0200 | 20,0 x 270,0 | 55,0 | 0,54 |
 |

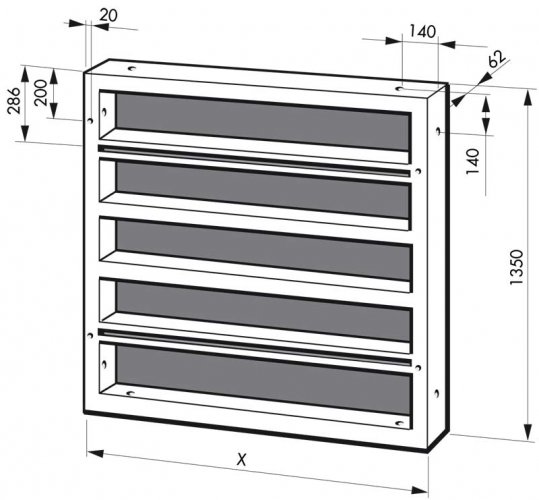

XT-Halbhöhenelemente 1350
| Artikel-Nr. | B x H in cm | kg | m² |
| XT 1350 EL 1350 | 135,0 x 135,0 | 178,0 | 3,64 |
| XT 1350 EL 1000 | 100,0 x 135,0 | 140,0 | 2,70 |
| XT 1350 EL 0920 | 92,0 x 135,0 | 132,0 | 2,48 |
| XT 1350 EL 0900 | 90,0 x 135,0 | 130,0 | 2,43 |
| XT 1350 EL 0880 | 88,0 x 135,0 | 127,0 | 2,37 |
| XT 1350 EL 0820 | 82,0 x 135,0 | 120,0 | 2,21 |
| XT 1350 EL 0760 | 76,0 x 135,0 | 114,0 | 2,05 |
| XT 1350 EL 0720 | 72,0 x 135,0 | 110,0 | 1,94 |
| XT 1350 EL 0620 | 62,0 x 135,0 | 100,0 | 1,64 |
| XT 1350 EL 0560 | 56,0 x 135,0 | 93,0 | 1,51 |
| XT 1350 EL 0510 | 51,0 x 135,0 | 88,0 | 1,37 |
| XT 1350 EL 0500 | 50,0 x 135,0 | 87,0 | 1,35 |
| XT 1350 EL 0460 | 46,0 x 135,0 | 82,0 | 1,24 |
| XT 1350 EL 0430 | 43,0 x 135,0 | 79,0 | 1,16 |
| XT 1350 EL 0380 | 38,0 x 135,0 | 74,0 | 1,02 |
| XT 1350 EL 0330 | 33,0 x 135,0 | 70,0 | 0,89 |
| XT 1350 EL 0300 | 30,0 x 135,0 | 65,0 | 0,81 |
| XT 1350 EL 0240 | 24,0 x 135,0 | 60,0 | 0,64 |
| XT 1350 EL 0200 | 20,0 x 135,0 | 55,0 | 0,54 |
 |

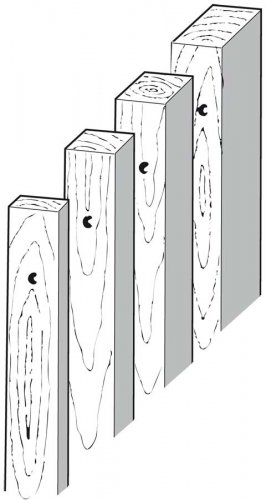

XT-Distanzhölzer 2500 / 1250
| Artikel-Nr. | B x H in cm | kg |
| XT 2500 DH 0015 | 1,5 x 12 x 250,0 | 5,0 |
| XT 2500 DH 0040 | 4,0 x 12 x 250,0 | 7,5 |
| XT 2500 DH 0060 | 6,0 x 12 x 250,0 | 10,0 |
| XT 2500 DH 0080 | 8,0 x 12 x 250,0 | 11,5 |
| XT 1250 DH 0015 | 1,5 x 12 x 125,0 | 2,5 |
| XT 1250 DH 0040 | 4,0 x 12 x 125,0 | 4,0 |
| XT 1250 DH 0060 | 6,0 x 12 x 125,0 | 5,0 |
| XT 1250 DH 0080 | 8,0 x 12 x 125,0 | 6,0 |
|
XT-Distanzhölzer 2700 / 1350
| Artikel-Nr. | B x H in cm | kg |
| XT 2700 DH 0015 | 1,5 x 12 x 270,0 | 5,0 |
| XT 2700 DH 0040 | 4,0 x 12 x 270,0 | 7,5 |
| XT 2700 DH 0060 | 6,0 x 12 x 270,0 | 10,0 |
| XT 2700 DH 0080 | 8,0 x 12 x 270,0 | 11,5 |
| XT 1350 DH 0015 | 1,5 x 12 x 135,0 | 2,5 |
| XT 1350 DH 0040 | 4,0 x 12 x 135,0 | 4,0 |
| XT 1350 DH 0060 | 6,0 x 12 x 135,0 | 5,0 |
| XT 1350 DH 0080 | 8,0 x 12 x 135,0 | 6,0 |
 |

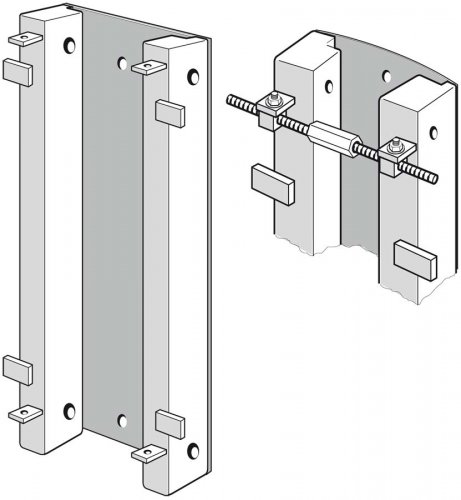

XT-Flexible Rundschalelemente 2500 / 1250
| Artikel-Nr. | B x H in cm | kg |
| XT 2500 FE 0200 | 20,0 x 250,0 | 45,0 |
| XT 2500 FE 0240 | 24,0 x 250,0 | 47,0 |
| XT 2500 FE 0280 | 28,0 x 250,0 | 48,5 |
| XT 1250 FE 0200 | 20,0 x 125,0 | 23,2 |
| XT 1250 FE 0240 | 24,0 x 125,0 | 24,2 |
| XT 1250 FE 0280 | 28,0 x 125,0 | 25,2 |
|
XT-Flexible Rundschalelemente 2700 / 1350
| Artikel-Nr. | B x H in cm | kg |
| XT 2700 FE 0200 | 20,0 x 270,0 | 48,0 |
| XT 2700 FE 0240 | 24,0 x 270,0 | 50,0 |
| XT 2700 FE 0280 | 28,0 x 270,0 | 52,5 |
| XT 1350 FE 0200 | 20,0 x 135,0 | 24,7 |
| XT 1350 FE 0240 | 24,0 x 135,0 | 25,5 |
| XT 1350 FE 0280 | 28,0 x 135,0 | 26,5 |
 |

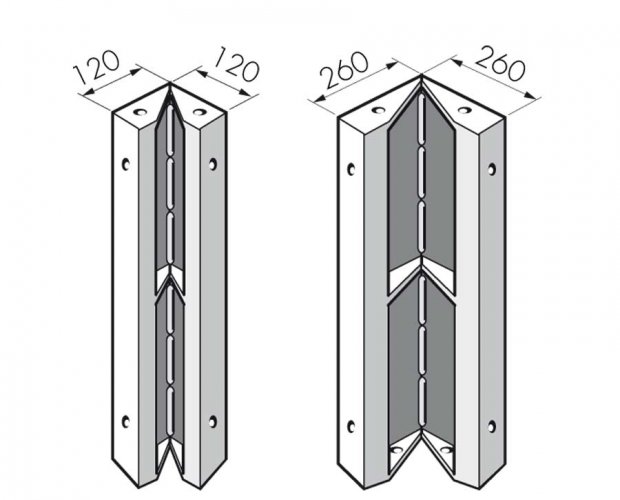

XT-Starre Eck-Elemente 2500 / 1250
| Artikel-Nr. | B x H in cm | kg |
| Außenecken starr | ||
| XT 2500 AS 0120 | 12 x 12 x 250,0 | 19,5 |
| XT 1250 AS 0120 | 12 x 12 x 125,0 | 10,0 |
| Innenecken starr | ||
| XT 2500 IS 0260 | 26 x 26 x 250,0 (90°) | 69,5 |
| XT 1250 IS 0260 | 26 x 26 x 125,0 (90°) | 34,5 |
| XT 2500 IS 0261 | 26 x 26 x 250,0 (45°) | 69,5 |
| XT 1250 IS 0261 | 26 x 26 x 125,0 (45°) | 34,5 |
|
XT-Starre Eck-Elemente 2700 / 1350
| Artikel-Nr. | B x H in cm | kg |
| Außenecken starr | ||
| XT 2700 AS 0120 | 12 x 12 x 270,0 | 21,0 |
| XT 1350 AS 0120 | 12 x 12 x 135,0 | 10,5 |
| Innenecken starr | ||
| XT 2700 IS 0260 | 26 x 26 x 270,0 (90°) | 75,0 |
| XT 1350 IS 0260 | 26 x 26 x 135,0 (90°) | 37,5 |
| XT 2700 IS 0261 | 26 x 26 x 270,0 (45°) | 75,0 |
| XT 1350 IS 0261 | 26 x 26 x 135,0 (45°) | 37,5 |
 |
XT-Bewegliche Eck-Elemente 2500 / 1250
| Artikel-Nr. | B x H in cm | kg |
| Außenecken beweglich | ||
| XT 2500 AB 0120 | 12 x 12 x 250,0 | 51,0 |
| XT 1250 AB 0120 | 12 x 12 x 125,0 | 25,5 |
| Innenecken beweglich | ||
| XT 2500 IB 0260 | 26 x 26 x 250,0 | 66,5 |
| XT 1250 IB 0260 | 26 x 26 x 125,0 | 33,5 |
|
XT-Bewegliche Eck-Elemente 2700 / 1350
| Artikel-Nr. | B x H in cm | kg |
| Außenecken beweglich | ||
| XT 2700 AB 0120 | 12 x 12 x 270,0 | 55,0 |
| XT 1350 AB 0120 | 12 x 12 x 135,0 | 27,5 |
| Innenecken beweglich | ||
| XT 2700 IB 0260 | 26 x 26 x 270,0 | 72,0 |
| XT 1350 IB 0260 | 26 x 26 x 135,0 | 36,0 |
